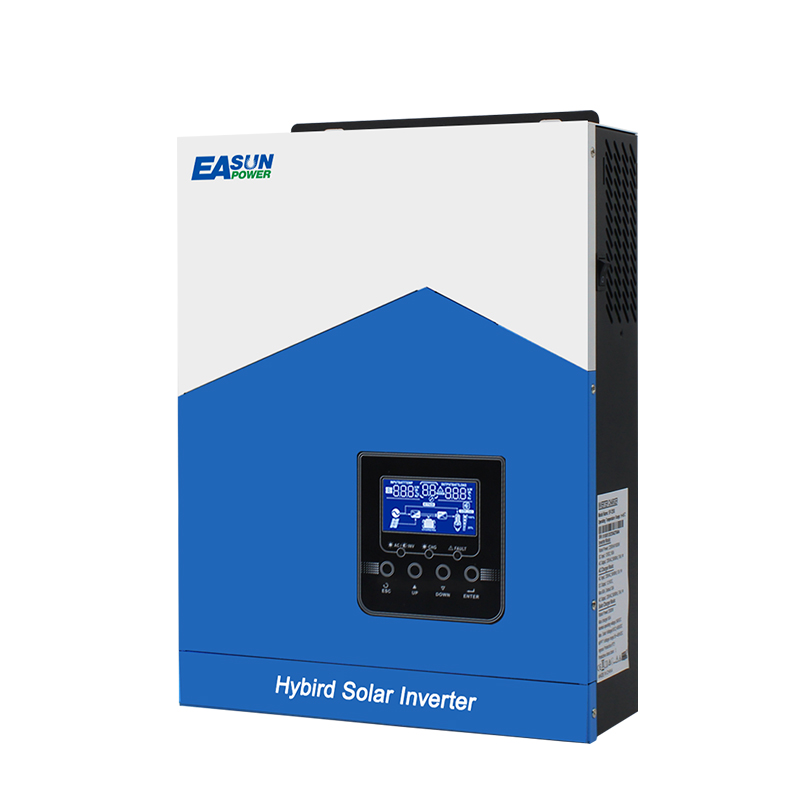

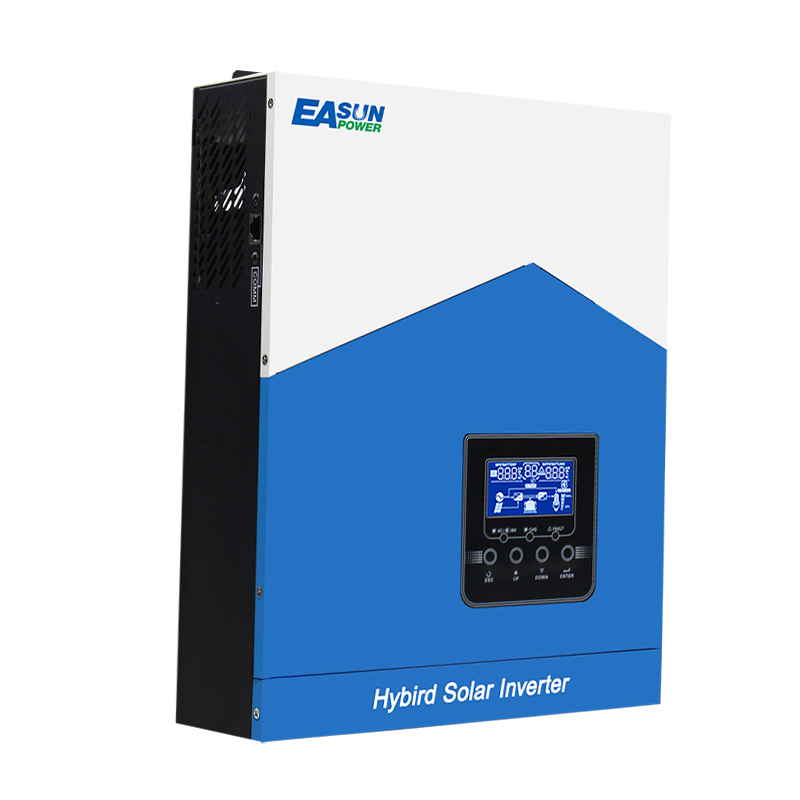

Easun Power 3.2KW Solar Inverter 80A MPPT Off Grid Inverter With WiFi

Name: Easun Power 3.2KW Solar Inverter 80A MPPT Off Grid Inverter With WiFi
SKU: ISolar-SMH-II-3.2K-Wifi-2
Price: 220 USD
Availability: InStock
Rating: 5 (5 reviews)

【Off Grid Inverter】【3200W+80A MPPT】

$220.00 USD

Free worldwide shipping

Free returns

Carbon neutral

Secure payments

SHIP FROM

Color

SMH-II-3.2K-WiFi

Quantity

Inventory quantity : 16

Description

The pre-sale is expected to arrive in 10 days, and the quantity is limited. Welcome to place an order.

Isolar SMH-II-3.2KW Manual

Pune sine wave inverter

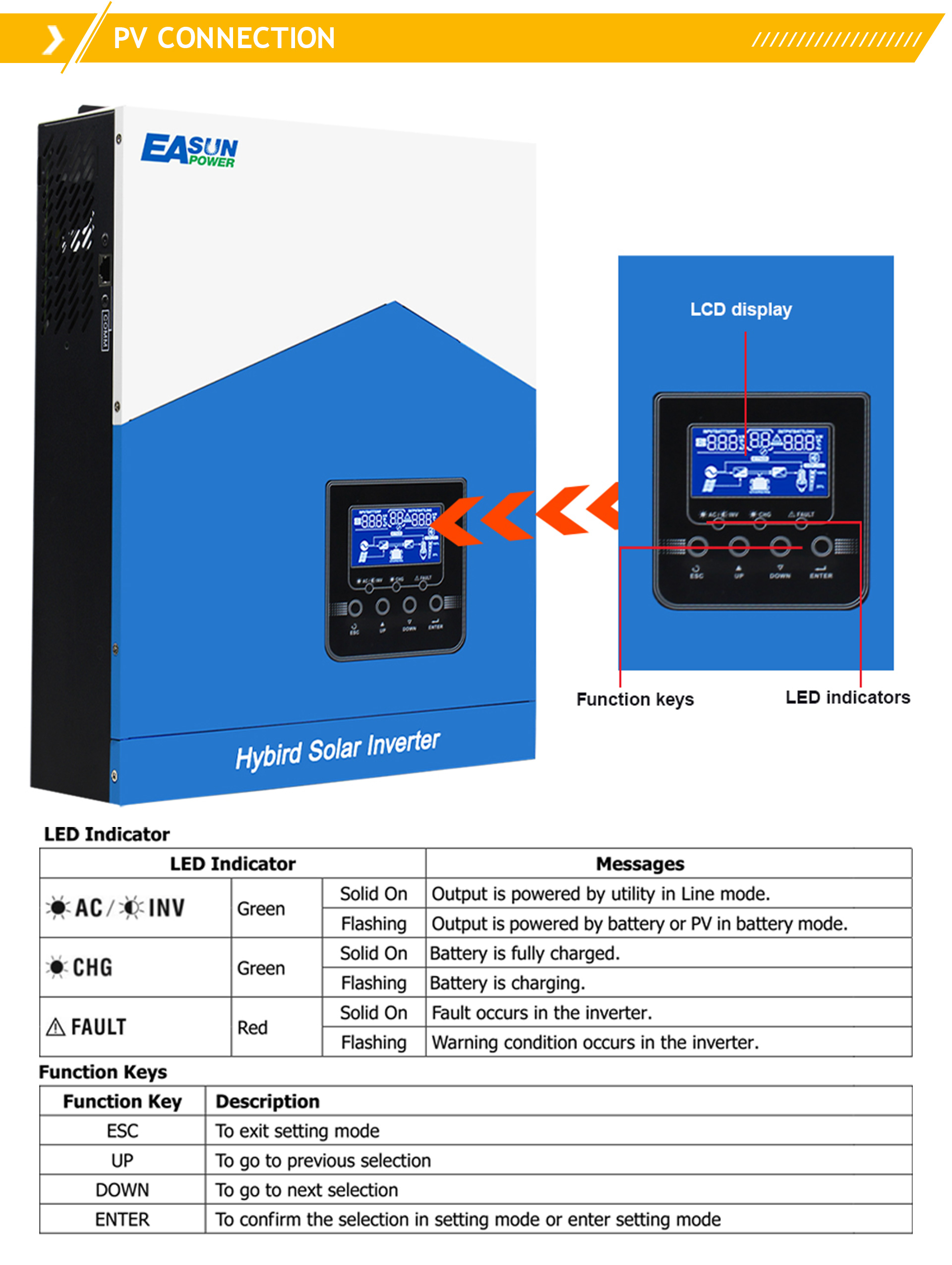

Configurable input voltage range for home appliances and personal computers via LCD setting

Configurable battery charging current based on applications via LCD setting

Configurable AC/Solar Charger priority via LCD setting

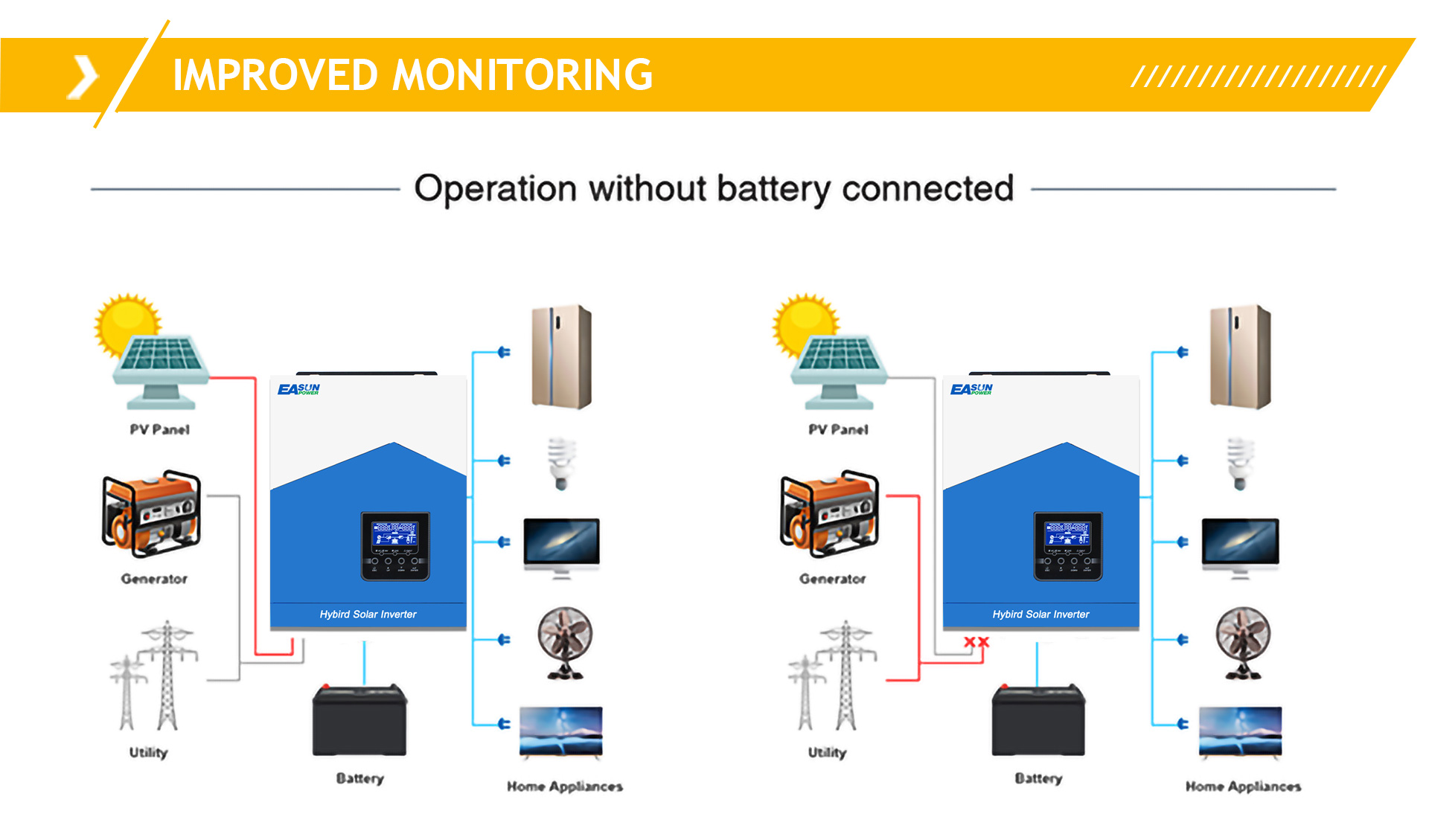

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload/ Over temperature/ short circuit protection

Smart battery charger design for optimized battery performance

Cold start function

WIFI/GPRS

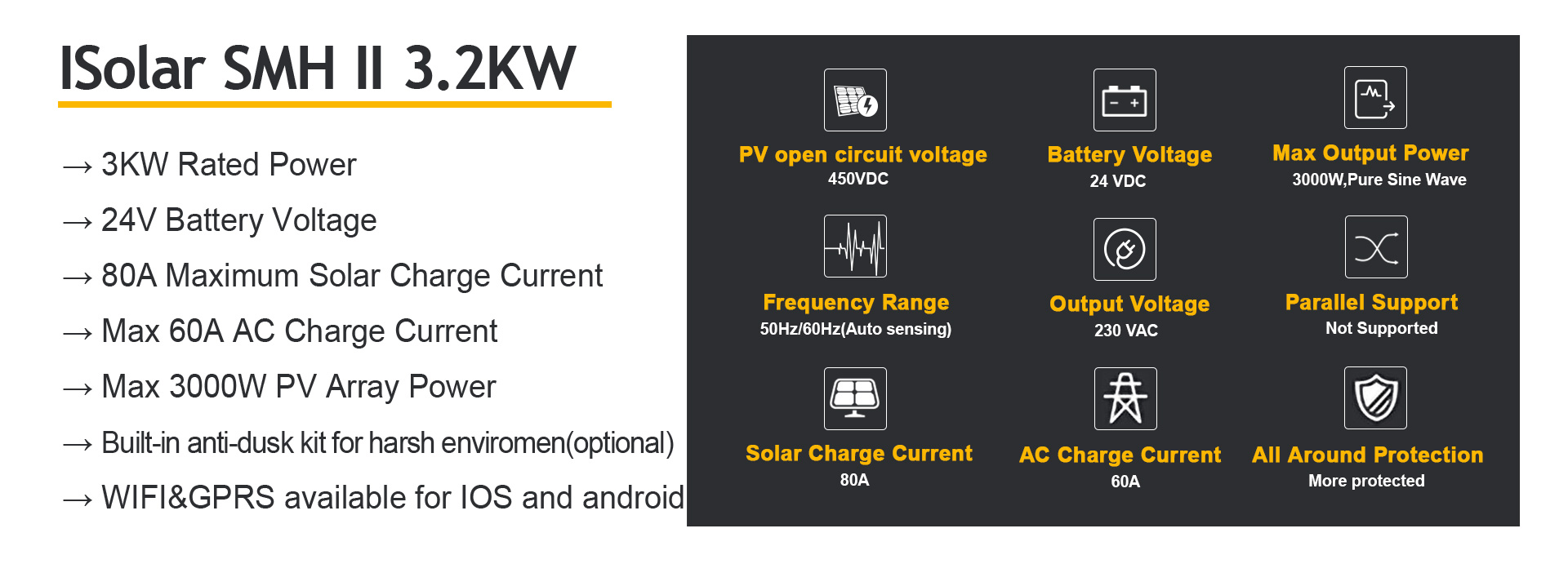

Models	ISolar-SMH-II-3.2KW-WIFI
Rated Power	3200VA/3000W
INPUT
Voltage	230Vac
Selectable Voltage Range	(170Vac~280Vac) ±2%；(90Vac-280Vac)±2%
Frequency Range	50Hz/ 60Hz (Auto detection)
OUTPUT
AC Voltage Regulation (Batt.Mode)	230VAC±5%
Surge power	6400VA
Transfer Time	10ms (for personal computers) / 20ms (for home appliances)
Wave form	Pure Sine Wave
BATTERY & AC CHARGER

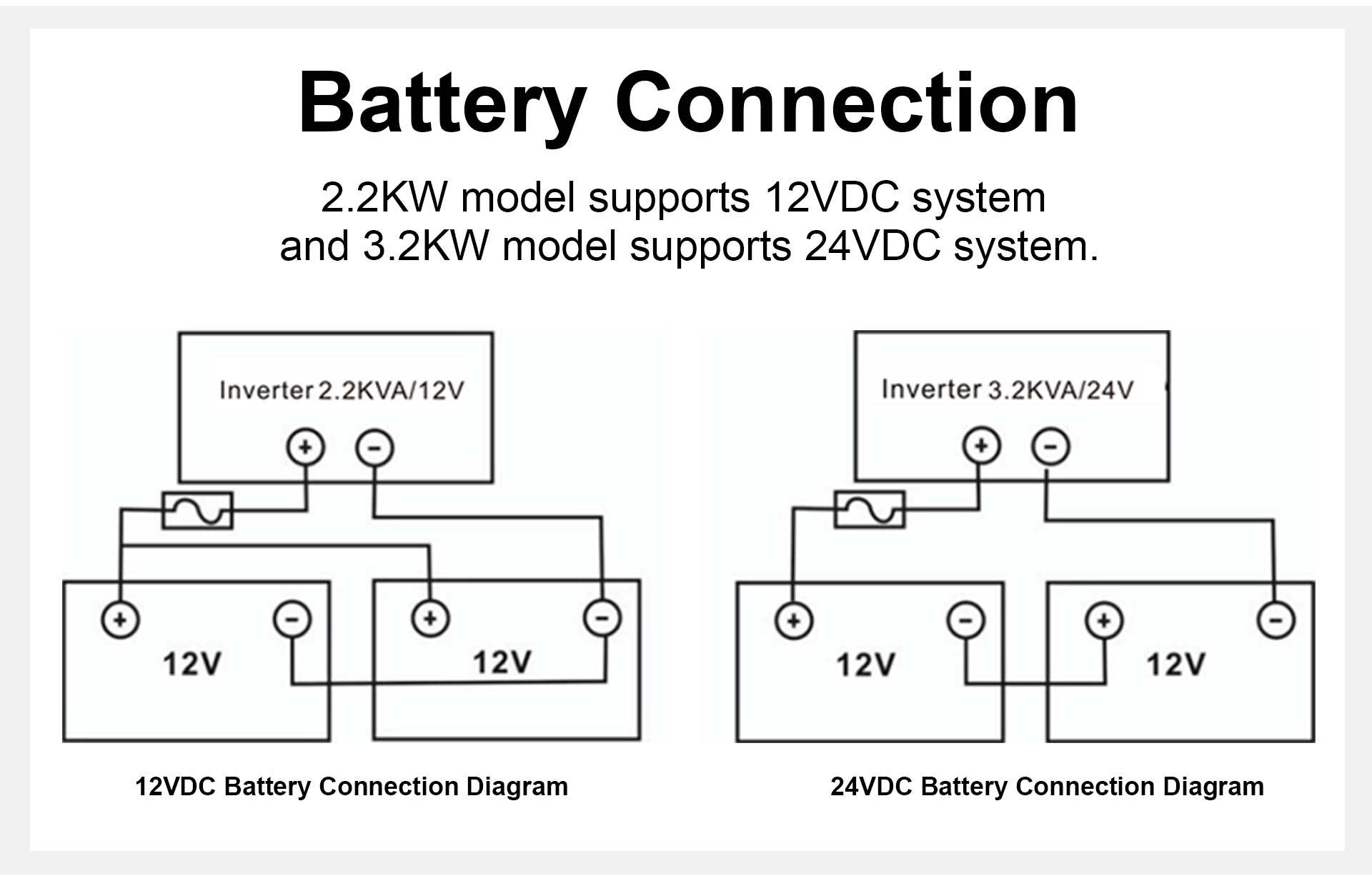

Battery Voltage	24VDC
Floating Charge Voltage	27VDC
Overcharge Protection	31VDC
Maximum charge current	60A
SOLAR CHARGER

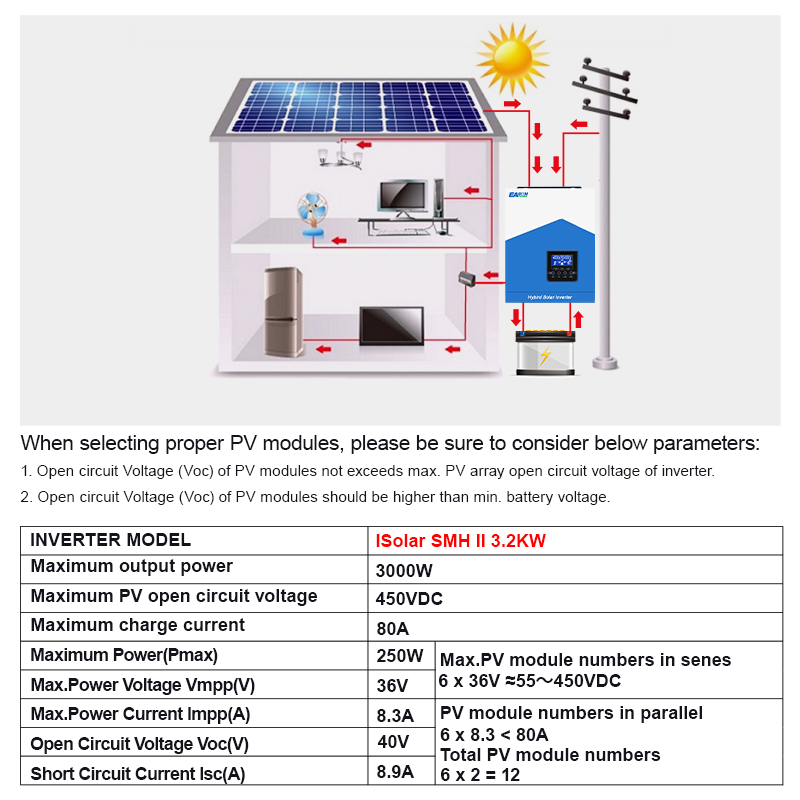

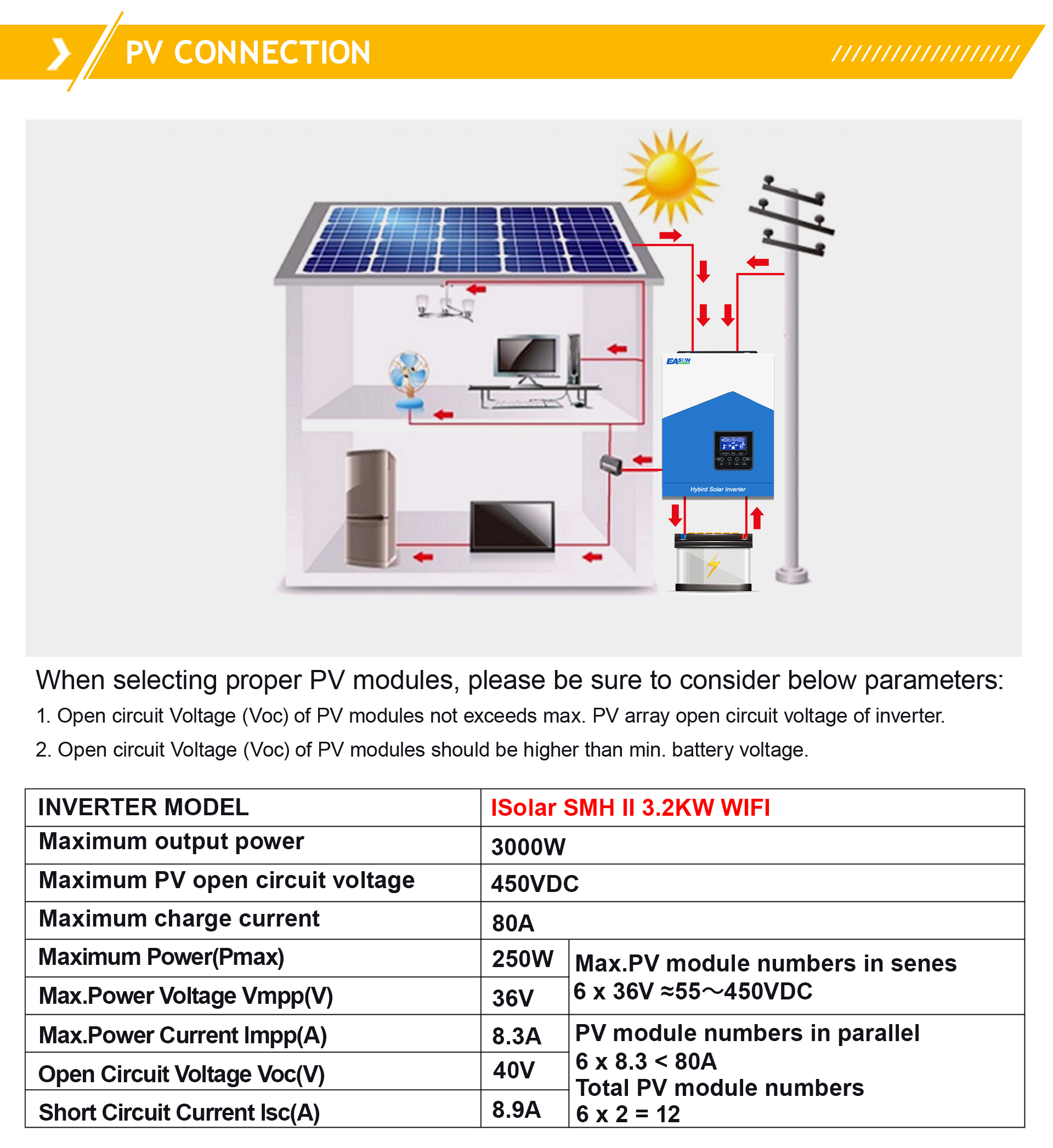

MAX.PV Array Power	3000W
MPPT Range@ Operating Voltage	55-450VDC
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Charging Current	80A
Maximum Efficiency	98%
PHYSICAL
Dimension.DWH(mm)	405x286x98mm
Net Weight (kgs)	5.0kg
Communication Interface	RS232/RS485(Standard) / GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 55°C
Storage Temperature	-15°C to 60°C
